TP-Link VIGI SP9030 (Intelligent Solar Power Supply System)

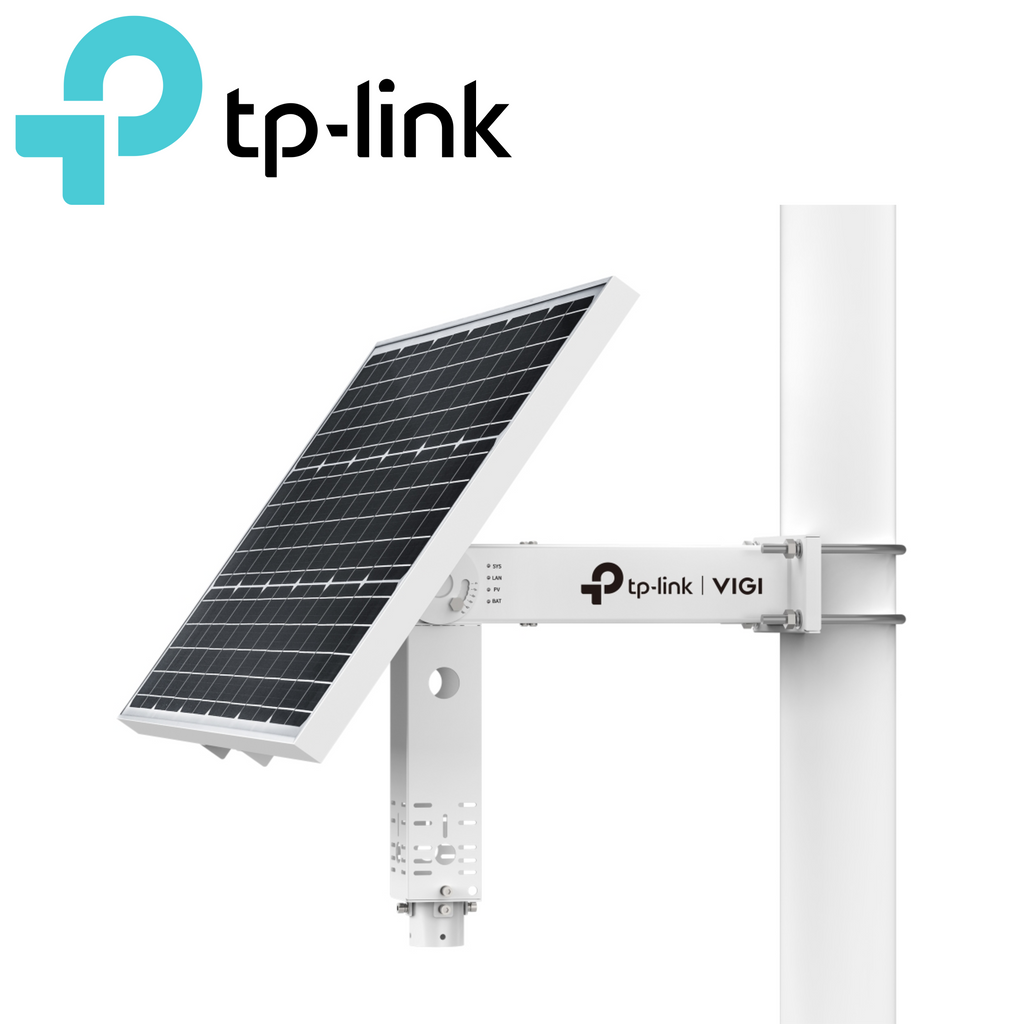

VIGI SP9030 Intelligent Solar Power Supply System

Key Features:

1. 90W Solar Panel: Provides ample power generation.
2. 30Ah/10.8V Lithium Battery: Efficient and long-lasting battery storage.
3. Modular Design: Flexible and adaptable setup.
4. Adjustable Angles: Offers multiple angles for optimal sunlight capture.
5. Intelligent Auxiliary Heating Technology: Ensures battery functionality in a wide temperature range.
6. MPPT Charging Controller: Maximizes solar panel power efficiency.
7. IP66 Weatherproof: Resistant to harsh weather conditions.
8. Remote Management: Access and manage system remotely.
9. Simple Installation: Easy setup and configuration.

Recommended Product Combinations:

1. VIGI SP9030 | 4G Cameras

   • Working Hours on Consecutive Rainy Days: 8.5 Days
   • On-load Charge on Sunny Days: 1.5 Days

2. VIGI SP9030 | Wireless Bridge | Bullet Cameras

   • Working Hours on Consecutive Rainy Days: 4.2 Days
   • On-load Charge on Sunny Days: 1.8 Days

3. VIGI SP9030 | Wireless Bridge | Pan Tilt Cameras

   • Working Hours on Consecutive Rainy Days: 2.2 Days
   • On-load Charge on Sunny Days: 2.9 Days

Intelligent Features:

• Load Control
• High and Low-Temperature Protection
• Overdischarge Protection
• Power Consumption Statistics
• Real-time Load Status Display
• Battery Level Display
• Time Zone and Region Selection
• Schedule Saving
• Firmware Remote Update
• Remote Reboot
• Local LAN Management
• Smart Charging Control
• Account Management
• Web Management
• Remote Reset
• Remote Message Push

Hardware Specifications:

• Interface:
  • 1× 10/100 Mbps RJ45
  • 1× Photovoltaic Panel Connector
  • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
• Indicator LED:
  • Quantity: 4 (SYS, LAN, PV, BAT)
  • Color: Blue

Battery Details:

• Type: Lithium
• Intelligent Auxiliary Heat: Yes
• Capacity: 31.2 Ah
• Voltage: 10.8 V
• Max. Output Voltage: 12.6 V
• Life: More than 500 cycles
• Dimensions: 250×74×74 mm (9.8×2.9×2.9 in)

Solar Panel Details:

• Power: 90 W
• Voltage: 18 V
• Dimensions: 998×516×30 mm (39.3×20.3×1.2 in)

Others:

• Certification: CB, PSE (Battery); CE, FCC, VCCI, IC, IP66
• Package Contents: VIGI SP9030, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
• Box Dimensions: 1110×615×225 mm (43.7×24.2×8.9 in)
• Weight:
  • Product: 15 kg
  • Package: 17.5 kg
• Operating Environment:
  • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
  • Operating Humidity: 10%~90%RH, Non-condensing
